Products BIC processing Lithium Metal Foil
NEW PIOXCEL BIC-LC anode on Tack Free coating

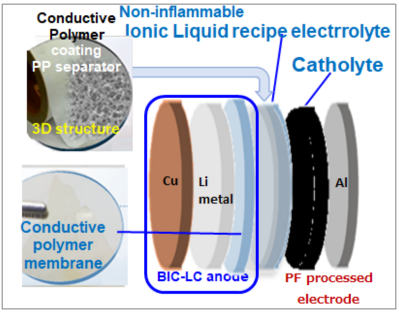

Buffer Insulator coating on Lithium metal - Copper collector(BIC-LC) anode electrode
All Solid state Electrolyte Lithium Metal Battery(LMB) cell Hi-voltage type Ionic Liquid recipe Electrolyte LMB cell
Remarks : PF means Polymer Filler.
Application Field of LMB in Next-GEN Rechargeable Battery
Hi-voltage type LMB cell Hi-capacity type LMB cell
① Up to 4.6 V ② Up to 5.2 V Utilization of Theoretical capacity 3860 mAh Li metal
10 times of Graphite material at 370 mAh
ＰＩＯＸＣＥＬ BＩＣ－LＣ Anode PIOXCEL BIC-LC Anode
Cathode Hi-Nickel Oxide Mn Oxide materials Hi-Nickel Oxide Li-FePO

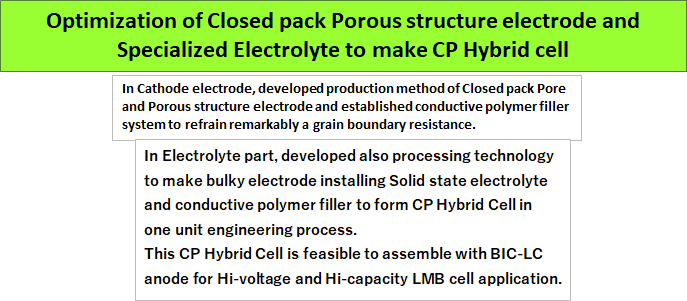

Closed Pack Porous structure electrode Closed Pack Porous structure electrode
Target Cell-LE Non-inflammable Electrolyte LMB Non-inflammable Electrolyte LMB
TREKLITE CP-ｐｐ separator HV TREKLITE CＰ-ｐｐ separator HC

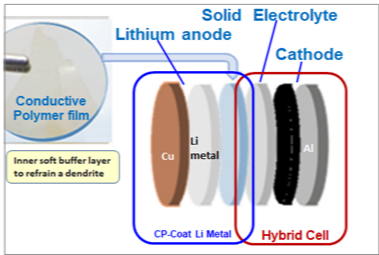

Target Cell-SS Solid state Electrolyte type LMB Solid state Electrolyte type LMB All Solid state Electrolyte type LMB All Solid state Electrolyte type LMB
Garnet, NASICON oxide SSE For Portable use
Sulfide SSE Argyrodite LPSX(X=Br, Cl), LPS For EV. ESSNew Non Burning, Flexible Sulfide Solid Electrolyte LMB on a Film Battery Cell form
Remarks : LE : Ionic Liquid type Electrolyte SS : Solid state Electrolyte
Also developed Non-inflammable electrolyte LIB for High voltage application
Film Battery Cell form of Flexible Sulfide Solid Electrolyte LMB

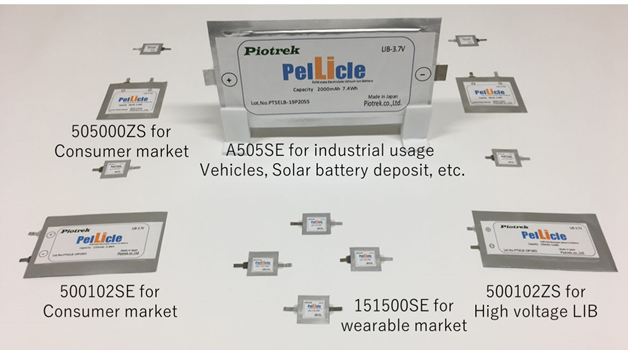

Battery Cell Submission on Consignment transaction basis:
Upon customers' requirements, We could develop industrial specification of Lithiumu Ion Battery(LIB),
Non-inflammable type of LIB and also Solid state electrolyte of Li Meal Battery, even All Solid state
Electrolyte type of LIB and LMB cell(LMB) in 100 cell and more comforming to Customer original-made specification.
