Ionic Liquid Electrolyte formulating Li salt |
|||||||||
| Ionic Liquid Electrolyte | |||||||||
| Piotrek supplies a range of pre-formulated electrolytes in cans ｒeady for use. As examples, those kinds of ionic liquid are listed up in the table; All of the Li salt formulated in those Electrolytes are of the Highest Purity grade. |
|||||||||
 |
|||||||||
MBPy |
1-butyl-1-methylpylpyrrolidinium |  |
 |
||||||
MPPｙ |
1-methyl-1-propylpyrrolidinium | ||||||||
EMI |
1-ethyl-3-methylimidazolium | ||||||||
TBMP |
tributylmethylphosphonium | ||||||||
TBOP |
tributyloctylphosphonium | ||||||||
FSI |
TFSI |
||||||||
| For high voltage application by use of NiCoMn at higher than 60% of Nickel contents, it is recommendable to use either ILE-45V or ILE-50V grades as IL formulated electrolyte non-inflammable and stable properties in the wide range of REDOX (electrical window). As abbreviation grades of Ionic Liquid, we are supplying ; Please refer Ionic Liquid Product List table. |
|||||||||
Imidazolium |
EMI, EVI, BMI, AOI, BDMI | ||||||||
Ammonium |
DBDM, DAA, DEME | ||||||||
Pyrrolidinium |
MPPy, MBPy | ||||||||
Phosphonium |
TBMP, TBOP | ||||||||

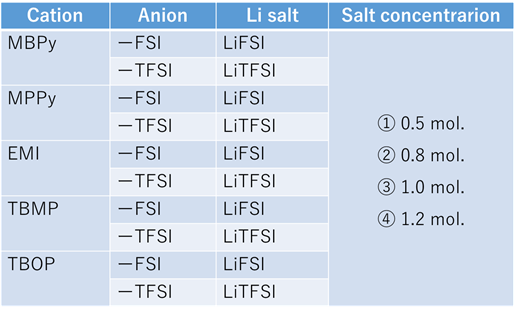

| Choose kinds of Ionic Liquid and also Li salt in the salt concentration. | |||||||||
 |
1,200ml bottle1,600 g 120ml bottle 160 g 600ml bottle 800 g 60ml bottle 80 g 300ml bottle 400 g 38ml bottle 50 g UN specification type Aluminum bottle with a tamper evident cap. All the products are provided in deliveringproducts together with Safety Data Sheet (SDS) and Test Report table. |
||||||||
| Li salt for Electrolyte formulation | |||||||||
| The highest purity lithium salts are required to make the best electrolytes possible. Piotrek supplies Lithium salts with >99.9% purity specification for both Lithium bis(fluorosulfonyl)imide(LiFSI) and Lithium bis(trifluoro methanesulfonyl)imide(LiTFSI). All salts are sold with analytical data guaranteeing purity for your applications. For Sulpher Battery application and others, it is supplyable with Lithium Difluoro(octolate)Borate(LiDFOB) and also Lithium bis (oxalato)borate(LiBOB). |
|||||||||
